Now available at our Andover Branch for order & collection - 32/1000 Box Profile Roofing Sheets

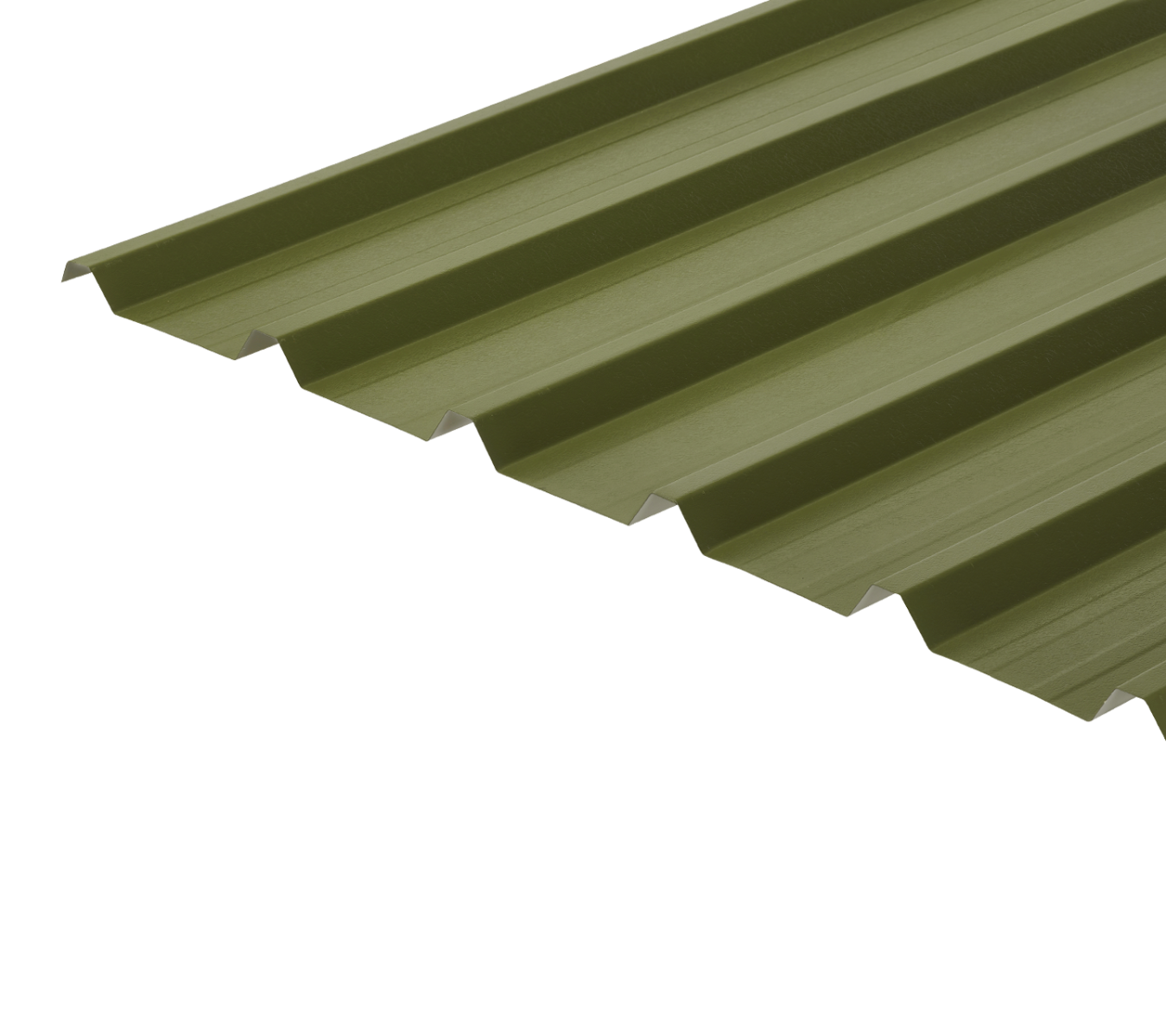

32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet

Rating:
99% of 100
From £17.40

About this product

32/1000 Box Profile Roofing Sheets with a 0.7mm thickness provide a robust, strong roof covering. Incorporating 6 profiles 200mm apart, with a 32mm profiled height, PVC Plastisol Roofing Sheets feature a tough leather-grain finish and are available in a range of colours to suit your project.

Please note images may vary from actual item supplied due to lighting variations and camera angles

6.9
NATIONAL DELIVERY - checking...
ANDOVER COLLECTION - checking...
OKEHAMPTON COLLECTION - checking...
Total Price: £17.40 Inc VAT
Add to Basket
Nationwide Delivery
Made In Uk

32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet

32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet
32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet 32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet Cladco 32/1000 Box Profile Roofing Sheets, manufactured in the heart of Devon

Online Roofing Calculator

Use our calculator to work out how many roofing sheets you need for your project.

Features

Uses of 32/1000 Box Profile PVC Roof Sheets

Cladco 0.7mm PVC Plastisol Coated Roofing Sheets can be used for a range of installations including commercial, domestic or agricultural. Profiled Roofing Sheets can be used as a single-skin sheeting, over clad of an existing roof, or as part of a built-up insulated system.

32/1000 Box Profile Sheets are a highly economical and robust profile with a thickness of 0.7mm for a range of roofing applications. They come in a range of different colours to suit every aesthetic and can be manufactured to your specific length requirements.

Benefits of 32/1000 Box Profile Roofing Sheets

Lightweight and easy to fit into your project, installation is quick and simple. Cladco Sheets have been independently tested in line with current CE EN 14782.

Galvanised steel is the ideal material for Cladco Roofing Sheets, providing excellent resistant properties against wind, heat, rain and snow, as well as rust, staining and corrosion.

Galvanised steel should not rust or corrode thanks to its reactive protective elements, guarding itself against natural breakdown by forming a passive corrosion product layer.

Do you need a Tarpaulin?
For Tarpaulins, please see our Lightweight, Standard, or Heavy Weight Tarpaulins.

Specifications:
Application: Wall or Roof
External Finish: PVC Plastisol
Internal Finish: Light grey Polyester
External Face: Profiled 32/1000, 32mm profile height, 200mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight: 6.9kg/m2

Looking for 0.5mm thickness?
See our 32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

Looking for a different finish?
For Polyester Paint see our 32/1000 Box Profile Sheeting 0.7 Thick Polyester Paint Coated Roof Sheet
For Galvanised see our 32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.

Roof Lights, Fixings, Fillers and Flashings complete the system, offering a robust, cost-effective roofing and cladding solution.

PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Permissible
Loads
Permissible Loads:

Permissible downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissible wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
Delivery
Information

Please click on the variable options on our checkout page. If you have chosen Dripstop, orders are currently unavailable for collection from our Andover branch.

Nationwide Delivery service available for all items with a range of options. The table below shows available options and timescales for delivery..

Useful Links: Delivery Policy | Collection Policy

Delivery

Nationwide Delivery estimated within 7-10 working days.


Collection

Goods can be collected from Okehampton, Devon. Please allow 5 working days prior to collection.


Safety Advice

Please note for collection or delivery suitable safety equipment is required for the handling of materials.


Pricing Table

TYPE WHEN? HOW MUCH?

Cladco Profile Delivery
(Orders under £500)
Estimated 7-10 working days* £192.00
Cladco Profile Delivery
(Orders over £500)
Estimated 7-10 working days* £96.00
Cladco Profile Delivery
(Scotland Delivery)
within 15 working days* £360.00

Parcelforce Standard
(Small Parcels)
3-5 Working Days £5.99
Parcelforce Standard
(Large Parcels)
3-5 working days £24.99

Sample Packs 5 Working Days FREE
*Please allow for public holidays and weekends (non-delivery days)

Roofing items may be delivered on a pallet, as per the terms and conditions these are considered part of the packaging and will need to be disposed of by the receiver of the items. We are unable to remove this pallet after delivery.
