Now available at our Andover Branch for order & collection - 32/1000 Box Profile Roofing Sheets

34/1000 Box Profile 0.7 Polyester Paint Coated Roof Sheet

Rating:
100% of 100
From £12.48

About this product

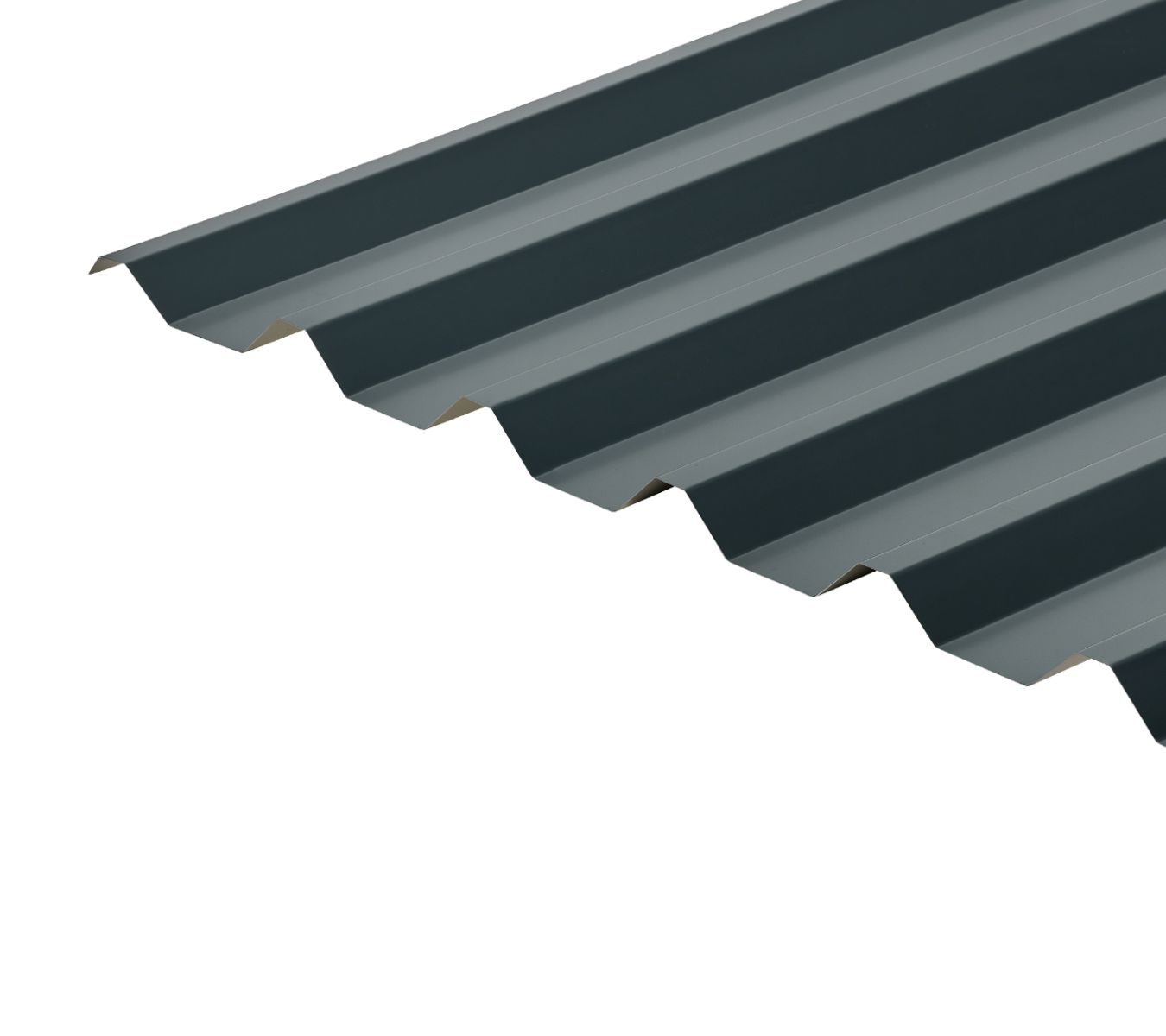

34/1000 box profile 0.7 thick polyester paint coated most popular sheets, with each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these 34/1000 box profile sheets give you a simple yet strong way to cover your build. Each 34/1000 box profile sheet will give your roof a secure weatherproof lap from sheet to sheet. Click Here to order a sample of our 34/1000 box profile polyester paint coated roof product.

Please note images may vary from actual item supplied due to lighting variations and camera angles

5.9
NATIONAL DELIVERY - checking...
ANDOVER COLLECTION - checking...
OKEHAMPTON COLLECTION - checking...
Total Price: £12.48 Inc VAT
Add to Basket
Nationwide Delivery
Made In Uk

34/1000 Box Profile 0.7 Polyester Paint Coated Roof Sheet

34/1000 Box Profile 0.7 Polyester Paint Coated Roof Sheet
34/1000 Box Profile 0.7 Polyester Paint Coated Roof Sheet 34/1000 Box Profile 0.7 Polyester Paint Coated Roof Sheet Cladco 34/1000 Box Profile Roofing Sheets, manufactured in the heart of Devon

Online Roofing Calculator

Use our calculator to work out how many roofing sheets you need for your project.

Features

Uses for 34/1000 Box Profile Sheets Polyester 0.7mm:

Most commonly seen on industrial, agricultural and commercial buildings our 34/1000 box profile sheets can also be used for domestic buildings where required. Available as a single skin sheet it can be used to build up an insulated system, over clad an existing roof or on its own to provide a solid weatherproof covering on any building. It is also suitable for roof application of 4 degrees or higher.

Please note: All Juniper Green polyester sheets and flashings may exhibit slight colour variances between products.

Benefits of 34/1000 Box Profile Sheets Polyester 0.7mm:

Fast and easy to fit, this lightweight 34/1000 box profile sheet is our most cost-effective way to cover your building. Available in different colours and independently tested to current CE EN 14782 requirements, these 34/1000 box profile roof sheets will provide you with a long-lasting and low maintenance solution for many years.

Looking for Tarpaulins?
Browse our Tarpaulin Range for Lightweight, Standard, or Heavy Weight Tarpaulins.

Contact us for further information.

Specifications:
Application: Wall or Roof
External Finish: Polyester paint finish
Internal Finish: Light grey Polyester

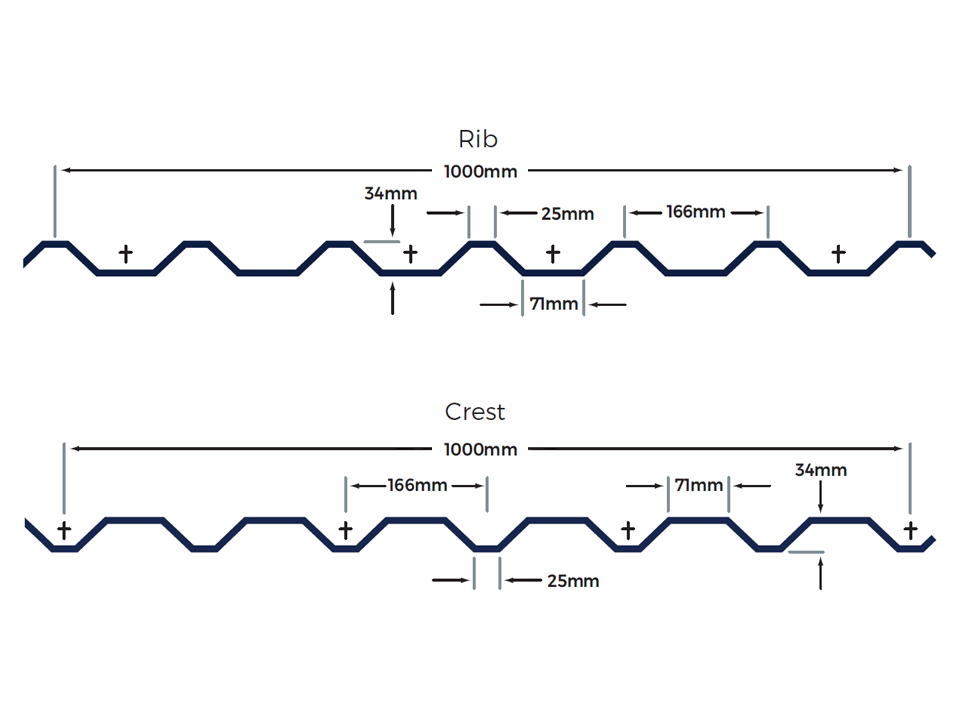

External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m in 0.7mm sheet thickness
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight: 0.7mm sheet thickness – 5.9kg/m2

Looking for 0.5mm thickness?
See our 34/1000 Box Profile 0.5 Thick Polyester Paint Coated Roof Sheet

Looking for a different finish?
For PVC Plastisol see our 34/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet
For Galvanised see our 34/1000 Box Profile 0.7 Thick Galvanised Roof Sheet

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.



PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Permissible
Loads
Permissible Loads:

Permissible downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissible wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
Delivery
Information

Please click on the variable options on our checkout page. If you have chosen Dripstop, orders are currently unavailable for collection from our Andover branch.

Nationwide Delivery service available for all items with a range of options. The table below shows available options and timescales for delivery..

Useful Links: Delivery Policy | Collection Policy

Delivery

Nationwide Delivery estimated within 7-10 working days.


Collection

Goods can be collected from Okehampton, Devon. Please allow 5 working days prior to collection.


Safety Advice

Please note for collection or delivery suitable safety equipment is required for the handling of materials.


Pricing Table

TYPE WHEN? HOW MUCH?

Cladco Profile Delivery
(Orders under £500)
Estimated 7-10 working days* £192.00
Cladco Profile Delivery
(Orders over £500)
Estimated 7-10 working days* £96.00
Cladco Profile Delivery
(Scotland Delivery)
within 15 working days* £360.00

Parcelforce Standard
(Small Parcels)
3-5 Working Days £5.99
Parcelforce Standard
(Large Parcels)
3-5 working days £24.99

Sample Packs 5 Working Days FREE
*Please allow for public holidays and weekends (non-delivery days)

Roofing items may be delivered on a pallet, as per the terms and conditions these are considered part of the packaging and will need to be disposed of by the receiver of the items. We are unable to remove this pallet after delivery.
