Now available at our Andover Branch for order & collection - 32/1000 Box Profile Roofing Sheets

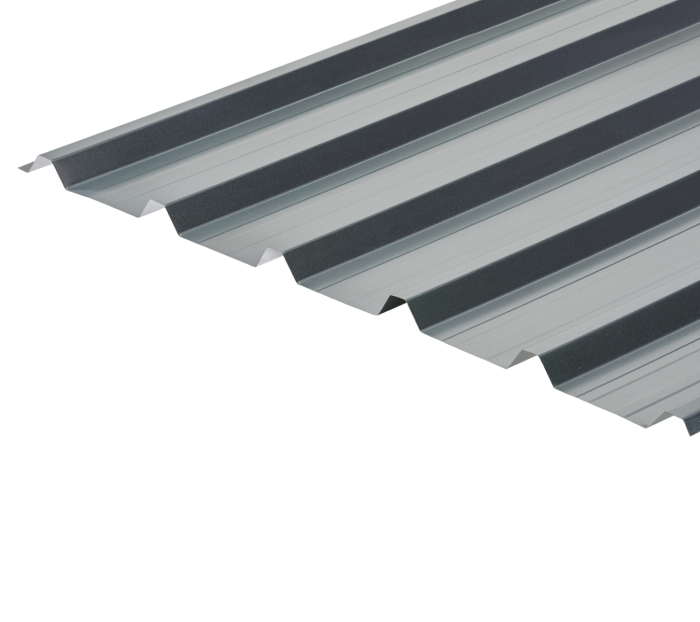

32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets

£12.48

About this product

Our 32/1000 box profile, 0.7 thick galvanised roof sheets, sometimes referred to as single skin box profile sheets, are one of our most robust roofing sheets.

Incorporating 6 profiles of 200mm pitch across the sheet width and 32mm profile height, these are superb sheets for home or commercial use. Of all our box profile sheets, these are preferred by some due to their low profile and superb galvanised steel finish. They're made from a galvanised steel strip and give 1000mm actual width cover when lapped. Galvanised finishes are often favoured for traditional projects where no colour finish is required.

Please note images may vary from actual item supplied due to lighting variations and camera angles

Colour Galvanised
5.9
NATIONAL DELIVERY - checking...
ANDOVER COLLECTION - checking...
OKEHAMPTON COLLECTION - checking...
Total Price: £12.48 Inc VAT
Add to Basket
Nationwide Delivery
Made In Uk

32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets

32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets
32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets

Online Roofing Calculator

Use our calculator to work out how many roofing sheets you need for your project.

Features

Uses of 32/1000 Box Profile Galvanised Roof Sheets:

Our profile roofing sheets can be used for industrial, agricultural, commercial and domestic roofing and cladding projects. Profile roofing sheets can be used as single skin sheeting, over clad of an existing roof or part of a built-up insulated system.

Some of the many benefits include these sheets being economic with a robust profile and we can manufacture to specific lengths. They are also extremely lightweight as well as being fast and easy to fit and are independently tested to current CE EN 14782 requirements.

Cladco Roofing Sheets are manufactured using high-quality Galvanised steel, giving the Sheets additional protection against corrosion, the elements, stains and rust. Thanks to the material’s natural protective reactive properties which prevents the breakdown of the product.

Looking for Tarpaulins?
Browse our Tarpaulin Range for Lightweight, Standard, or Heavy Weight Tarpaulins.

Specifications:
Application: Wall or Roof
External Finish: Galvanised
Internal Finish: Galvanised
External Face: Profiled 32/1000, 32mm profile height, 200mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m in 0.7mm sheet thickness
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight: 0.7mm sheet thickness – 5.9kg/m2

Please note: There is an accepted tolerance of up to 0.25% for Sheet lengths.

Looking for 0.5mm thickness?
See our 32/1000 Box Profile 0.5 Thick Galvanised Roof Sheet

Looking for a different finish?
For PVC Plastisol see our 32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet
For Polyester Paint see our 32/1000 Box Profile Sheeting 0.7 Thick Polyester Paint Coated Roof Sheet

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding

Permissible
Loads
Permissible Loads:

Permissible downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissible wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
Delivery
Information

Please click on the variable options on our checkout page. If you have chosen Dripstop, orders are currently unavailable for collection from our Andover branch.

Nationwide Delivery service available for all items with a range of options. The table below shows available options and timescales for delivery..

Useful Links: Delivery Policy | Collection Policy

Delivery

Nationwide Delivery estimated within 7-10 working days.


Collection

Goods can be collected from Okehampton, Devon. Please allow 5 working days prior to collection.


Safety Advice

Please note for collection or delivery suitable safety equipment is required for the handling of materials.


Pricing Table

TYPE WHEN? HOW MUCH?

Cladco Profile Delivery
(Orders under £500)
Estimated 7-10 working days* £192.00
Cladco Profile Delivery
(Orders over £500)
Estimated 7-10 working days* £96.00
Cladco Profile Delivery
(Scotland Delivery)
within 15 working days* £360.00

Parcelforce Standard
(Small Parcels)
3-5 Working Days £8.50
Parcelforce Standard
(Large Parcels)
3-5 working days £30.00

Sample Packs 5 Working Days FREE
*Please allow for public holidays and weekends (non-delivery days)

Roofing items may be delivered on a pallet, as per the terms and conditions these are considered part of the packaging and will need to be disposed of by the receiver of the items. We are unable to remove this pallet after delivery.
